How To Create a Trendy Seamless Pattern in Illustrator

Posted: 05 Jul 2010 12:00 AM PDT

The great thing about seamless repeating patterns is that once created, they can be used as a base for all kinds of awesome designs. Skateboard decks, custom apparel, package designs and website backgrounds are just some of the uses for the good old pattern swatch. Follow this tutorial to build a vector based repeating pattern of your own, featuring trendy graphics of skulls, stars, lightning bolts and other cool pop imagery.

The pattern we’ll be creating has a mono colour scheme of grey, white and black and features a bunch of cool graphics. Speech bubbles, skulls, crossbones, stars, drips, sprays and lightning bolts all help to add that urban/punk pop feel.

View the full size pattern design

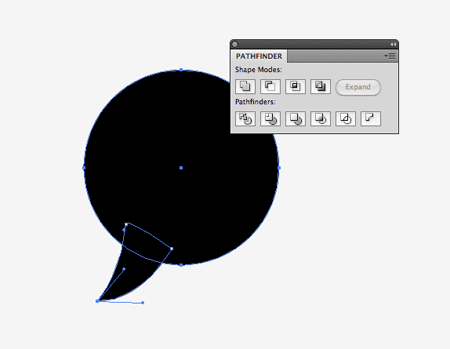

Open up Adobe Illustrator. The first graphic we’ll create is the speech bubble. Draw a perfect circle (hold Shift) and give it a black fill. Using the Pen tool, draw a pointed outline to simulate a typical speech bubble shape, overlap this with the main circle then select both objects and click the Unite option from the Pathfinder window to merge them both together.

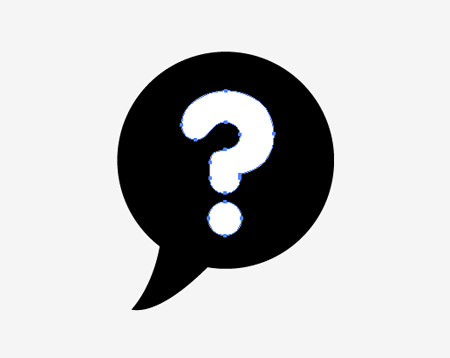

Use the Type tool to add some form of typographic symbol. Here I’m using a question mark set in VAG Rounded. Center up the mark by eye then group the two objects together.

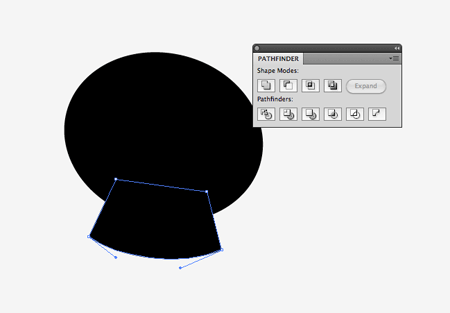

Next we’ll start on a simple skull graphic. Draw an oval with a black fill and rotate it slightly. Use the Pen tool to draw the jaw of the skull, giving it a curved lower edge. Unite these two shapes with the Pathfinder.

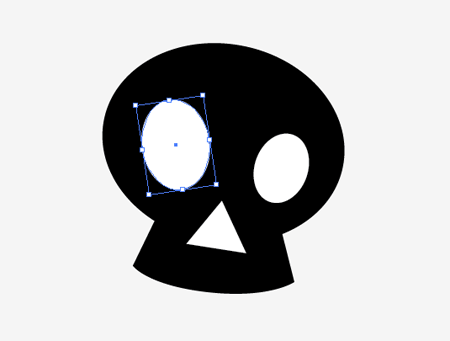

Draw two ovals to form the eyes, rotating each one slightly. Then place a triangle as the nose. To produce a triangle, select the Polygon tool and repeatedly press the down cursor key to reduce the number of points while dragging the shape with the mouse.

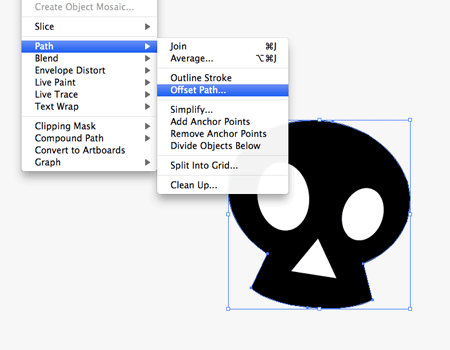

Select the black skull shape and go to Object > Path > Offset Path. Enter 1mm in the options and select OK.

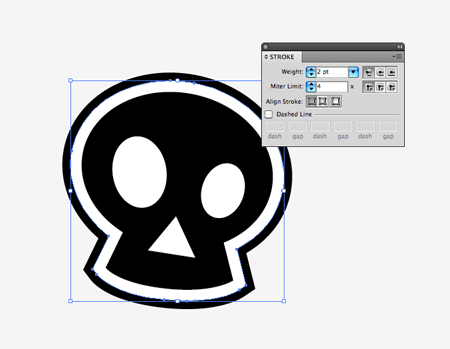

The newly generated shape by default sits at the top of the stack, so press CMD+Shift+[ to send it to the bottom. Swap this shape’s black fill to white with a black stroke. Bump up the stroke to 2pt and align it to the outside. Group all the objects together.

Draw a diagonal line and bump up the stroke to around 7pt. Use two small circles to overlap the line at each end. This forms a basic bone shape for the crossbones graphic.

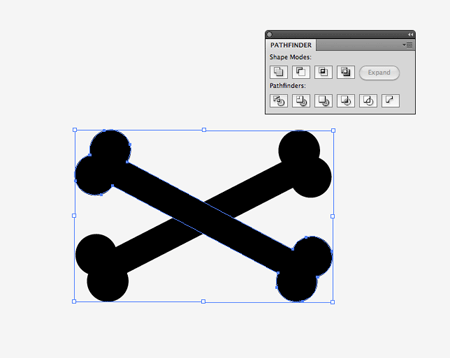

Merge the shapes together using the Pathfinder, then Copy (CMD+C), paste in place (CMD+F) and rotate to form the complete crossbones graphic.

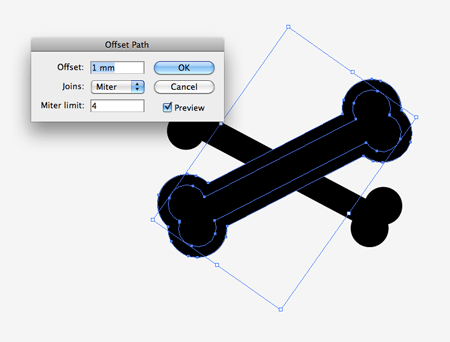

Select each bone in turn and add an Offset Path (Object > Path > Offset Path). Press CMD+[ to knock the new path underneath the inner shape then add the same white fill and black stroke at 2pt as the skull graphic.

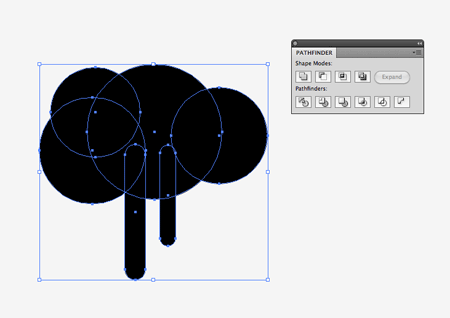

Overlap lots of circles to form a simple spray graphic. Use Rounded Rectangles with the maximum corner radius to represent a couple of drips. Merge all these shapes together using the Pathfinder.

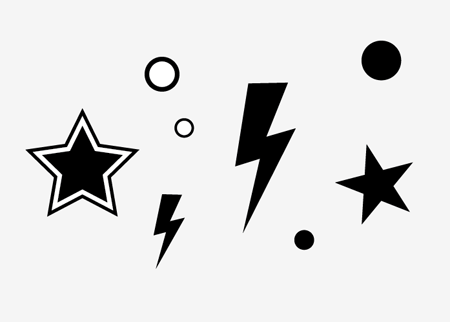

Draw some basic shapes as filler graphic for your design. A lightning bolt can be drawn with the Pen tool, circles are easily made with the Ellipse tool and stars with the, errm… Star tool.

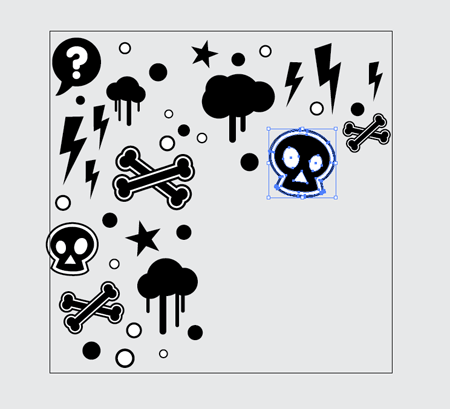

Create a new document at 100x100mm then draw a large grey rectangle expanding beyond the edges of the artboard. Begin pasting in your graphics and laying out the shapes within the square.

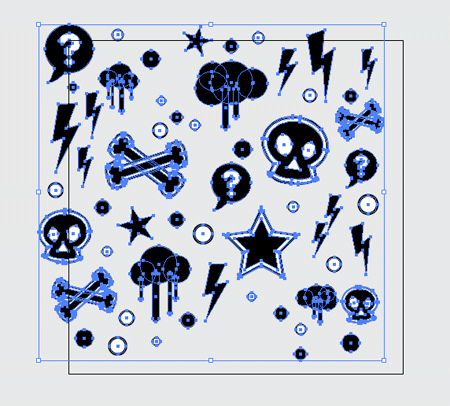

When the design is beginning to take shape, draw a selection over all your objects and move them diagonally upwards to extend outside the artboard.

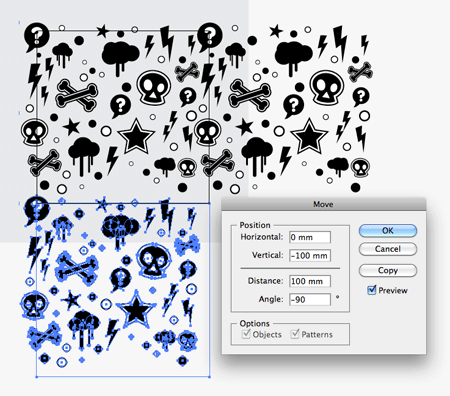

Copy (CMD+C) then Paste in place (CMD+F) a duplicate of your objects then hit the Enter key to bring up the Move options. First enter 100mm in the Horizontal field, then repeat the process but enter -100mm in the Vertical field. Repeat the process for a third time, but with both 100mm and -100mm in the Horizontal and Vertical fields.

Inspect the areas around the document artboard where the pattern is repeating for gaps. Paste in further objects to fill these gaps but keep them within the confines of the artboard.

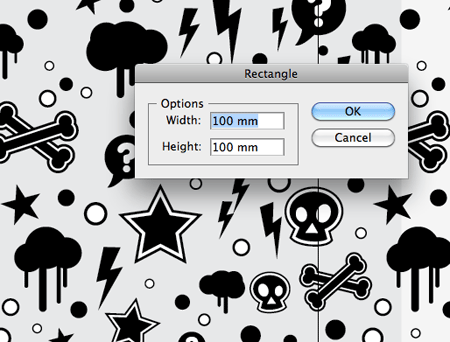

Select the rectangle tool then click on the artboard to bring up the options box. Enter dimensions for a 100x100mm square, clear out the fill and stroke then align the object with the artboard.

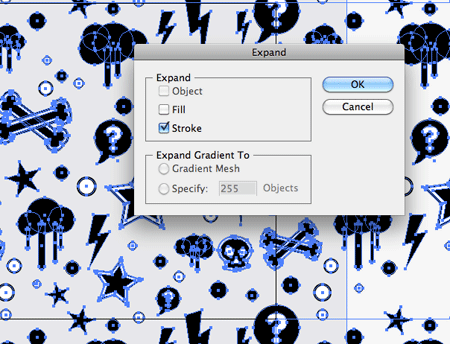

Press CMD+A to Select All, then go to Object > Expand. Select just the Stroke option, this will convert all strokes into solid shapes.

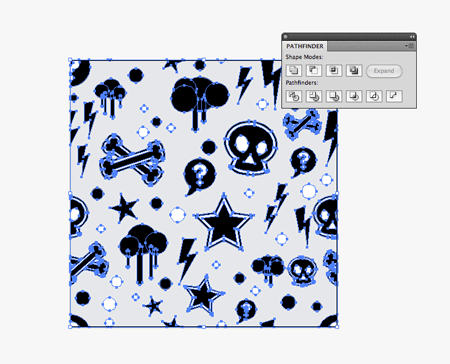

Hold Shift and click the newly created square that’s sitting over the artboard to remove it from the selection, then press CMD+G to group everything else. Reselect this square along with the group of objects and select the Crop option from the Pathfinder window.

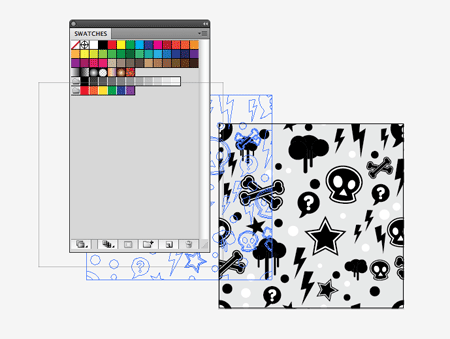

The pattern graphic is now complete. To put it to use inside Illustrator we can drag the shape into the Swatches palette. Add this swatch as a fill to any shape to generate the seamless pattern fill.

Download the source file
